      current location： Home Product Center>LED Lighting Driver IC>Non-Dimmable>BOOST CC/CV
      Sketch
      BP2636C is a Boost PFC driver with high efficiency, high PF and low THD. The device operates in critical conduction mode and is better for EMI and Efficiency improvement.
      Advantage

        PF>0.9, THD<10% at Universal Input

        Single-winding inductor for simple design

        Internal 500V MOSFET

        Critical Conduction Mode

        HV JFET for fast startup

        Voltage reference accuracy of up to ±2%

        Integrated protections

        Available in SOP-8 Package

      Application area
      • BOOST APFC pre-converter

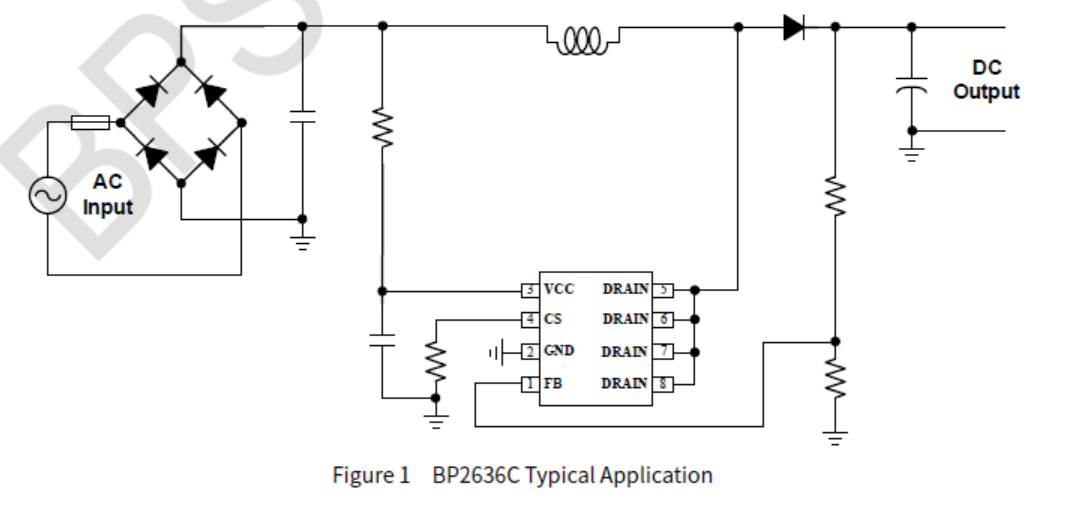

      Schematic diagram

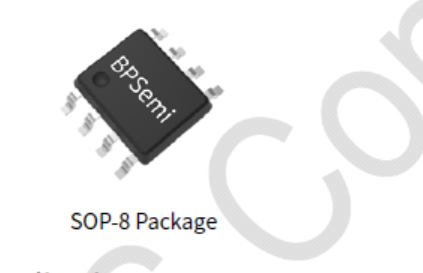

      Package
      Technical documents
      Document type Title Type Download
      Specification sheet BP2636C pdf Easy version Full version
